Autonomous Waiters – Complete Project Documentation

Team Name:

ACM Robatics Solution

Contributors:

Arian Tavousi, Milad Rabiei, Christian Negri Ravera

1. Introduction

This project deploys a fleet of five PAL Robotics TIAGo robots as autonomous waiters in a sushi restaurant, handling order delivery, table clearing, customer interactions and many more.

2. System Overview

The software follows a classic perception → reasoning → actuation pipeline, with a thin orchestration layer balancing the fleet

3. Workflow

  1. Customer speaks – simulated ASR (voice_recognition.py) publishes “Can I have sushi”

  2. Order verification – reasoning_order_verification.py parses dish names, enqueues via send_order service

  3. Orchestrator – a free robot polls /robot_state_decision, receives the “sushi” task

  4. ReasoningAction – reasoning_action.py turns the plan + table command into ActionLib goals (move, arm, gripper)

  5. Execution – control_wheel.py, control_arm.py, control_gripper.py carry out the motions

  6. Feedback loop – upon completion each controller publishes status; task_manager.py feeds back into the orchestrator

  7. Table placement – after delivery reasoning_table_placement.py issues PLACE_DISH or CLEAR_TABLE commands

  8. Interaction – speech_generator.py & speaker.py announce actions to customers

4. Architectural Diagrams

The component diagram of the full architecture and the behaviour diagrams for "Orchestration and Coordination", "Reasoning Table Placement", and "Order Verification" are available at the following link : Link 1

or Link 2

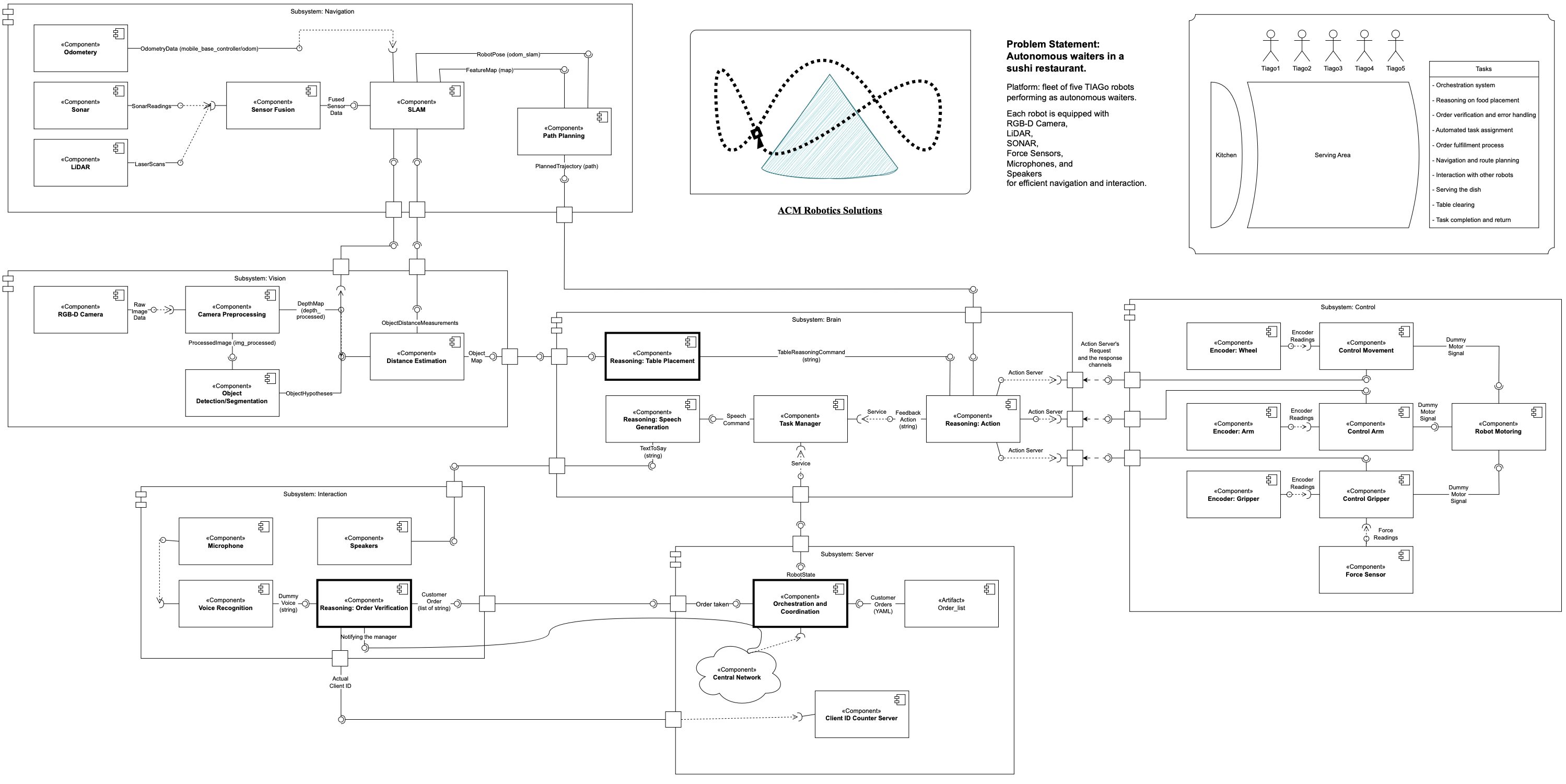

Component Diagram

Figure 1. High-level component interaction.

5. Codebase Tour

Each script is grouped by its pipeline layer. Click through the API docs for details.

Vision

  • camera.py – static RGB + synthetic depth generator

  • camera_preprocessing.py – colour-correction & noise reduction

  • object_detection.py – placeholder object detector (1 Hz)

  • distance_estimation.py – depth-powered object localization

Brain

  • task_manager.py – event aggregator, polls /robot_state_decision

  • reasoning_action.py – translates symbolic plans into ActionLib goals

  • reasoning_table_placement.py – maps PLACE/CLEAR decisions to commands

  • reasoning_speech_generation.py – throttles and republishes speech commands at 1 Hz

Control

  • control_wheel.py – base controller (first waypoint)

  • control_arm.py – proportional joint controller (ActionLib)

  • control_gripper.py – binary gripper actuator (ActionLib)

  • encoder_wheel.py, encoder_arm.py, encoder_gripper.py – synthetic encoders

  • force.py – fake force sensor for manipulator testing

Interaction

  • speech_generator.py – buffers and throttles TTS commands

  • speaker.py – last-mile relay to TTS backend

  • microphone.py, voice_recognition.py – synthetic ASR pipeline

  • reasoning_order_verification.py – validates “Can I have …” orders

Server

  • orchestration_and_coordination.py – YAML-backed order queue + state gateway

  • id_counter_server.py – Globally update the client numbering

6. Running the Project

You need to add the number of Robots you want to launch (the defualt is 2) in order to have sufficent number of nodes created, for this you can edit ROS params, Then use the following to run the project:

roslaunch cogar_ws tiago_launch.launch

7. Running the Test

For running the test open the test folder and then run the following:

python integration_test.py

8. Live System Demo

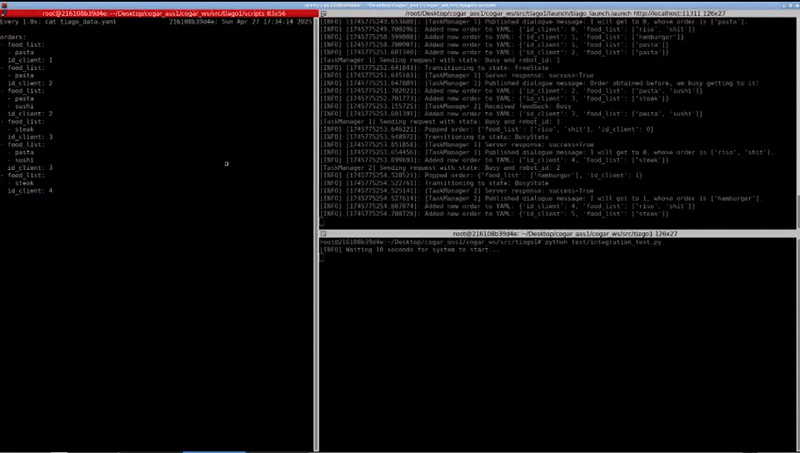

Here we have a live demo of the project, in the right-up we have roslaunch window, in the right-down we have our test window and in the left is customer’s orders.

Animated demo of the Autonomous Waiter in action

9. Test Results

Faulty launch:

[TEST] Expected nodes: 39, Found nodes: 38
F[INFO] Integration tests complete.

======================================================================
FAIL: test_node_count (main.TestIntegration)
----------------------------------------------------------------------
Traceback (most recent call last):
  File "cogar_ws/src/tiago1/test/integration_test.py", line 16, in test_node_count
    self.assertEqual(len(self.nodes), expected_node_count)
AssertionError: 38 != 39

----------------------------------------------------------------------
Ran 2 tests in 20.607s

FAILED (failures=1)

Successful launch:

[TEST] Expected nodes: 39, Found nodes: 39
[INFO] Integration tests complete.

----------------------------------------------------------------------
Ran 2 tests in 20.503s

OK
